Video Wall Controller 3X3 2X2 1X4 3X1 Multi-Channel HDMI VGA AV USB T364720
Sale price
$33.50
Regular price $143.06
Skip to product information

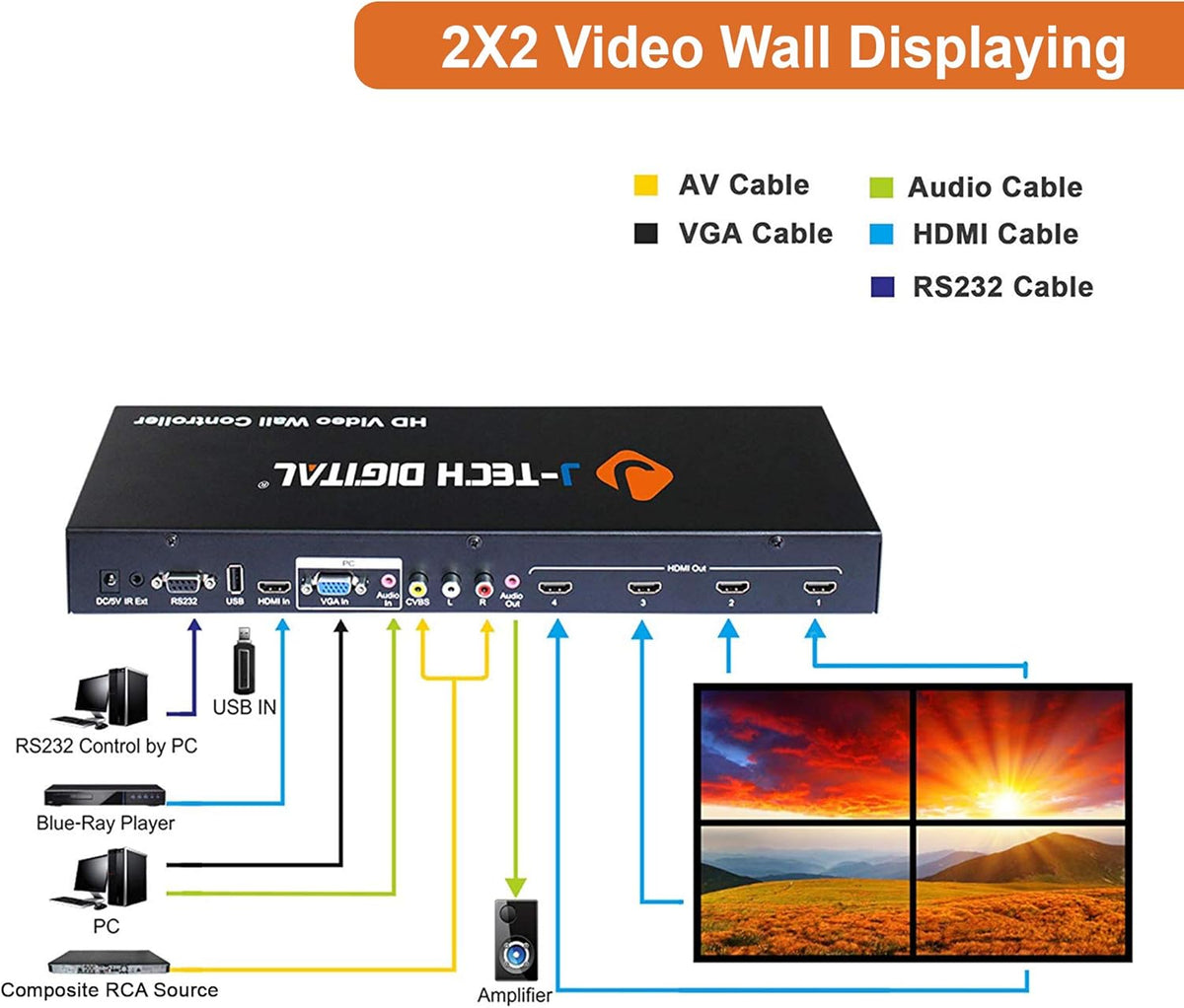

: Supports many different video interfaces (HDMI, VGA, AV) and internally decodes video (MP4, AVI, MPG, WMV, RMVB), audio (MP3), photo (JPG, BMP, PNG) formats through USB interface

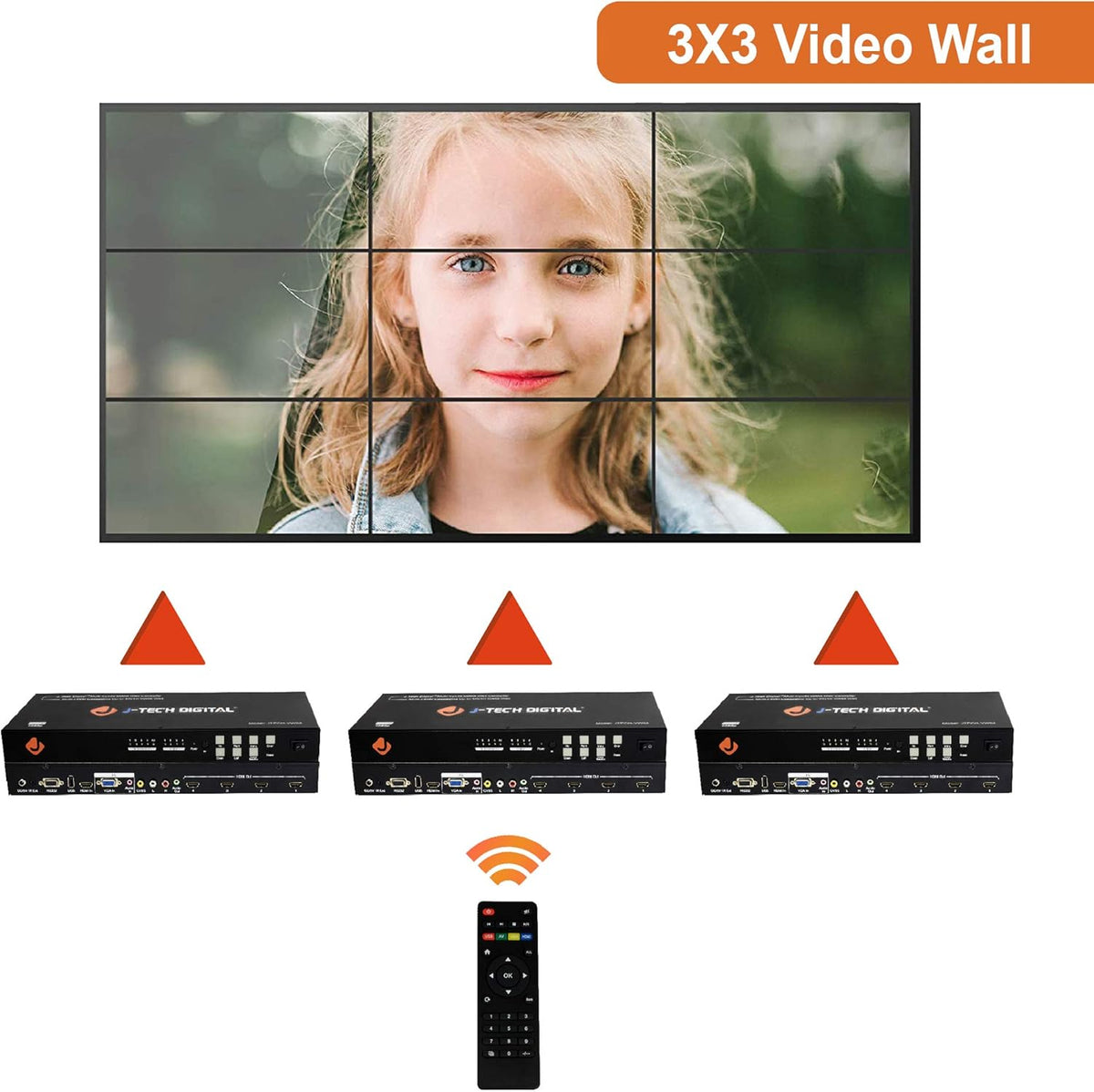

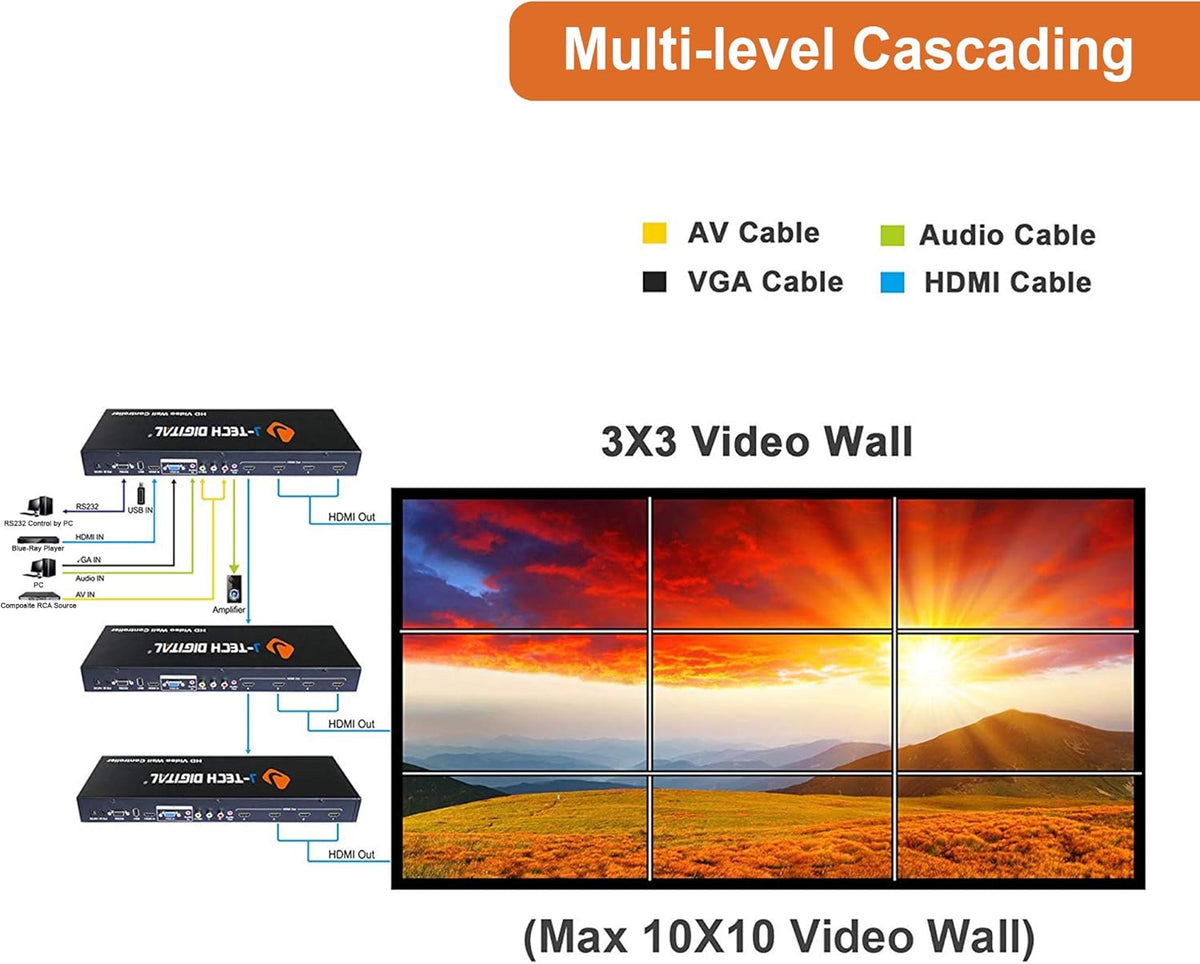

× : Separates one of video sources into 4 displays forming 2×2 video wall; CASCADING FUNCTION: Supports multi-level cascading to create 3×3, 4×4…Video Wall (Max 10×10); TV models currently not supported: Samsung: NU8000S
: Between multiple sources via remote control or push buttons on the unit. Supports advanced remote control options including RS232.
: 60/50Hz@1080p/i, 60/50Hz@720p, 60/50Hz@576p/i, 60Hz@480p/i
: Effective September 1st, 2019, this J-Tech Digital product includes a 3-YEAR EXTENDED manufacturer warranty (instead of the standard 1-year warranty). It also includes FREE lifetime technical support from our customer support team located in Sugar Land (just outside of Houston) in the great state of TEXAS! We are available Monday through Friday: 9AM - 6PM CST. Contact information available on our seller page.
Electronics Television & Video Television Accessories
Video Wall Controller 3X3 2X2 1X4 3X1 Multi-Channel HDMI VGA AV USB T364720
Sale price
$33.50
Regular price $143.06
Shipping calculated at checkout.
: Supports many different video interfaces (HDMI, VGA, AV) and internally decodes video (MP4, AVI, MPG, WMV, RMVB), audio (MP3), photo (JPG, BMP, PNG) formats through USB interface
× : Separates one of video sources into 4 displays forming 2×2 video wall; CASCADING FUNCTION: Supports multi-level cascading to create 3×3, 4×4…Video Wall (Max 10×10); TV models currently not supported: Samsung: NU8000S
: Between multiple sources via remote control or push buttons on the unit. Supports advanced remote control options including RS232.
: 60/50Hz@1080p/i, 60/50Hz@720p, 60/50Hz@576p/i, 60Hz@480p/i
: Effective September 1st, 2019, this J-Tech Digital product includes a 3-YEAR EXTENDED manufacturer warranty (instead of the standard 1-year warranty). It also includes FREE lifetime technical support from our customer support team located in Sugar Land (just outside of Houston) in the great state of TEXAS! We are available Monday through Friday: 9AM - 6PM CST. Contact information available on our seller page.
| JTECH-VW02 | JTECH-VW09 | JTECH-VW05 | JTECH-SMX44 | JTECH-VWM04 | |
|---|---|---|---|---|---|
| Main Function | 2x2@1080p | 3x3@4K30 | 2x2@4K60 | 2x2@1080p | 2x2@4K60 |
| Main Function | HDMI 1.4 | HDCP 1.4 | HDMI 1.4 | HDCP 1.4 | HDMI 1.4 | HDCP 2.2 | HDMI 1.4 | HDCP 1.4 | HDMI 1.4 | HDCP 2.2 |
| Inputs | 1 x HDMI | 1 x VGA + 3.5mm | 1 x RCA | 1 x USB | 1 x HDMI | 1 x VGA | 1 x DP | 1 x USB | 1 x HDMI | 4 x HDMI | 4 x HDMI |
| HDMI Outputs | 1 | 9 | 4 | 4 | 4 |
| Max VW Config | 2x2 | 3x3 | 2x2 | 2x2 | 2x2 |
| Other Functions | Cascading Up to 10x10 | Cascading Up to 10x10 | Image Rotation | N/A | Upscale | Downscale | Multiviewer |
| Control | Panel | IR | RS-232 | Control4 | JTD P8 Driver | Panel | IR | WEB | RS-232 | Panel | IR | Panel | IR | WEB | RS-232 | Control4 | JTD P8 Driver | Panel | IR | WEB | RS-232 |
| Matrix Mode | No | No | No | Yes | Yes |
